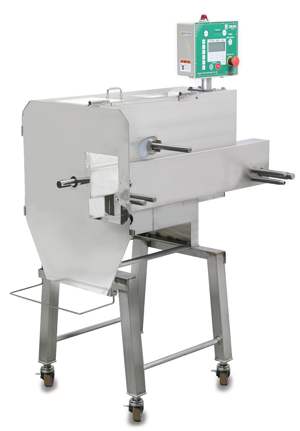

Model ECD-703 is a food slicer for the food processing company which be newly designed to be easy and safe use more.
Various cutting is possible only by blades setting, cutting size setting and putting the materials on the conveyor belt.
New
Advantages
Newly Upgraded Touch Panel
New speed – FAST- which is 1.2 times faster than Normal, increasing production volume.
Highest Blade Quality
ECD-703 can cut green onion, leaf vegetable, onion, carrot, root vegetable and fruits into slices, shreds and julienne shreds by using various optional cutter.
■ The Cleanest Cuts Ever Seen
■ Razor-sharp & Long Lasting Blades
Quickest Changeover
Only 15 seconds to change from one blade to another
Sanitation
For keeping the machine clean, washing after the work is indispensable.

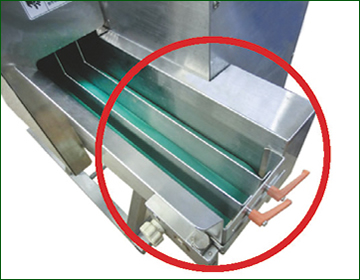

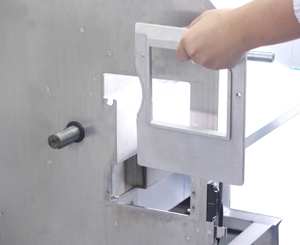

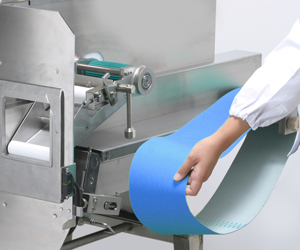

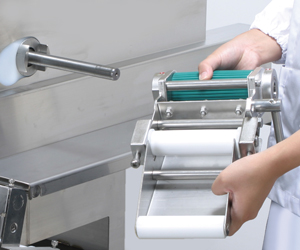

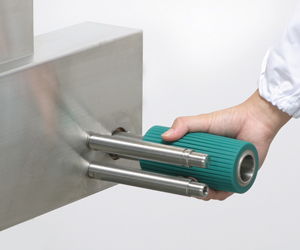

It is possible to be washed thoroughly for model ECD-703, because the conveyor belt, the mouth frame and the rolls etc. can be removed as the new designed structure.
Of course, there is no necessity such as tools.
Easy Operation

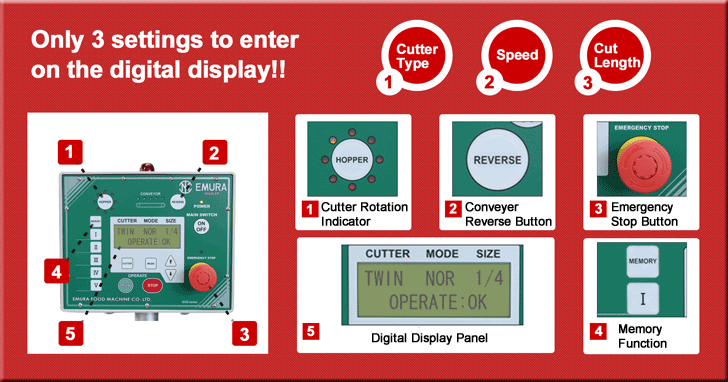

The digital display panel allows for easy setting of the thickness of materials to be cut.
Also, it quickly provides information on current settings and operational state.

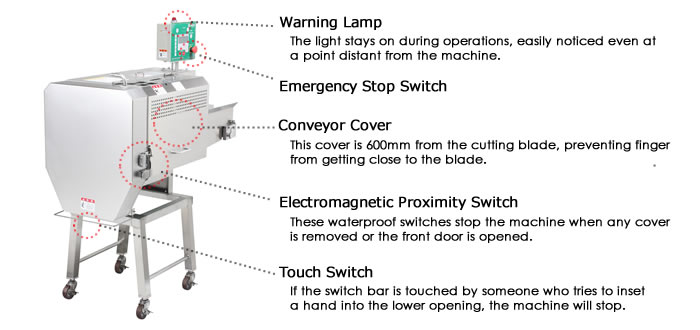

Safety
Safety is an indispensable factor in any food slicing machine. In order to ensure safe operation, SEVEN CHEFS Food Slicers incorporate various types of safety features.

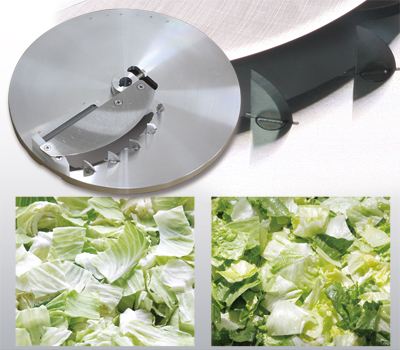

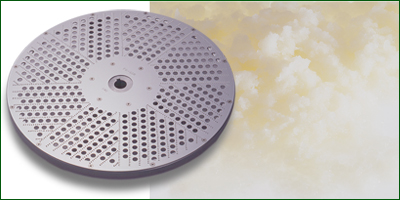

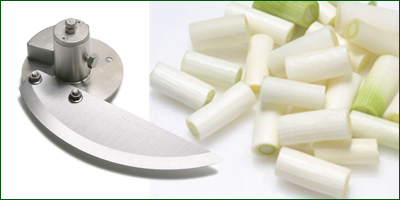

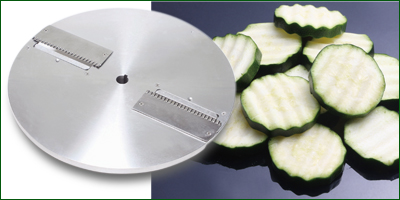

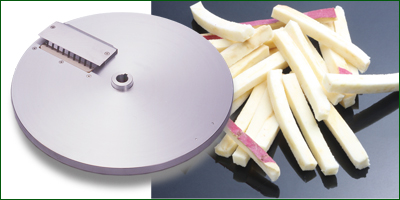

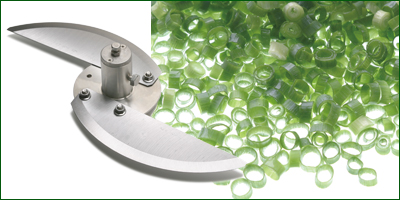

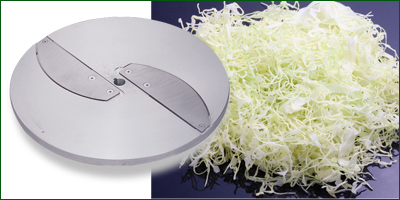

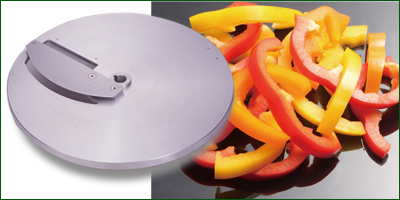

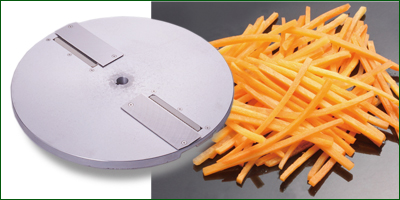

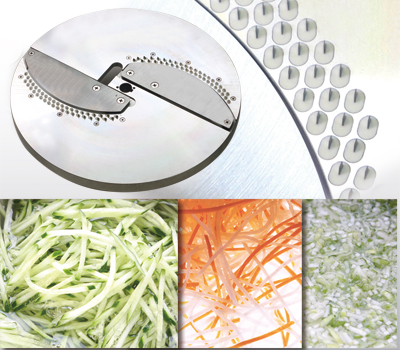

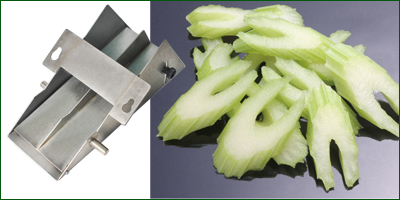

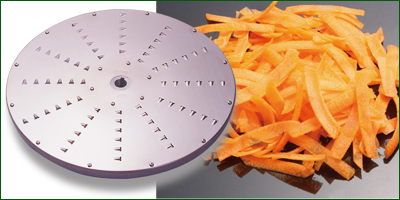

Disk Cutters & Sample Pictures
The following disk cutters allow for various cutting styles.
| Material(Vegetables) | Green onion, Chive, Onion, Cabbage, Carrot, Potato, Radish, Cucumber, Lettuce, Spinach, Sweet potato, Bell pepper, Burdock, Cassava, Lemon grass, Ginger, Bamboo shoot, Okura, Celery, Long bean, Asparagus, Lotus root, Banana, Orange peel etc. |
|---|---|
| Material(Others) | Pickles, Boiled octopus, Boiled squid, Seaweed etc. |
| Cutting Shape | Cuts, Slices, Shreds, Julienne shreds, Chopping, Diagonal slices, Grating, Crinkle cut, Wave cut, Flat cut |
Specifictions

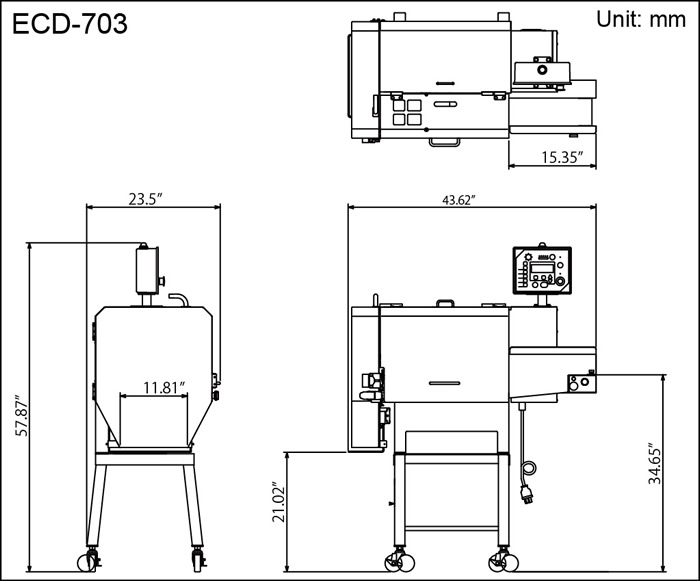

| Machine dimensions | W23.50" x L43.62" x H58.66" (W597 x L1108 x H1490) |
|---|---|
| Machine weight | 287lb (130kg) |
| Motor | (For Blade) 3-phase, 230V, 400W, 2.6A (For Conveyor) 3-phase, 230V, 200W, 1.0A |
| Cutting entrance hole size | W4.92" x H3.54" (125 x 90mm) |
| Cutting thickness range | 1/64" to 3-1/8" (0.5 - 80mm) |
| Processing capability | 440 to 4400 lb/h (200 to 2000kg/h) |
The processing capability differs depending on the thickness of cut and the type of food used.
