New Top Belt Design

Adjustable top belt design, giving ability to slice more items with standard blade.



New Blade Design

3 blade function added for higher productivity, still with same high quality cut.

Advantages

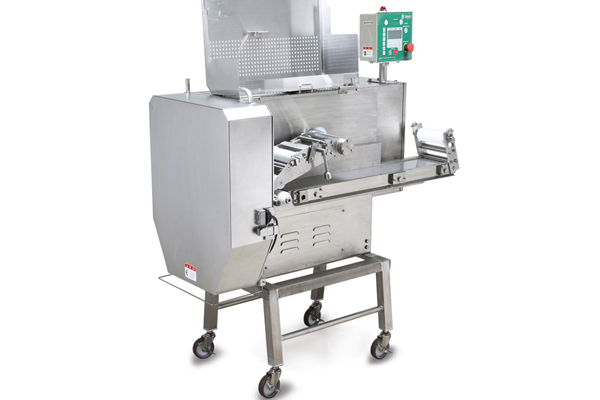

Vegtable Cutter Machine with 150mm conveyor width !

ECD-303 can cut lettuce, cabbage, Chinese cabbage, onion, carrot into slices, shreds, julienne shreds and square shapes by using various optional cutter.



Highest Blade Quality

■ The Cleanest Cuts Ever Seen

■ Razor-sharp & Long Lasting Blades



Quickest Changeover

Only 15 seconds to change from one blade to another

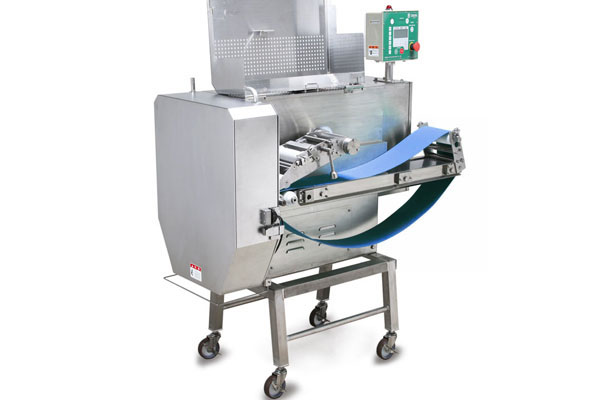

Sanitation

Belt removal cleaning is quick and easy.

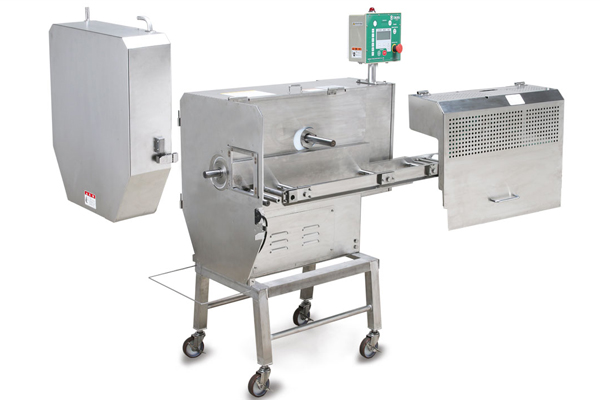

After a 2 minute belt and blade removal, the entire machine is ready to be sanitized. These 2 processes enable full access to all machine surfaces requiring cleaning and sanitization.

Sanitation1 Sanitation2 Sanitation3

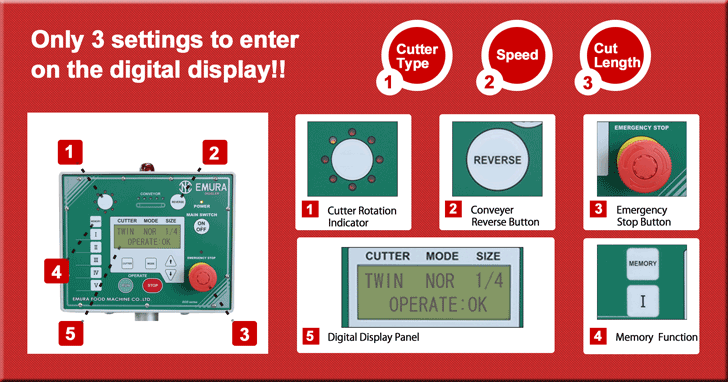

Operation

Top Page

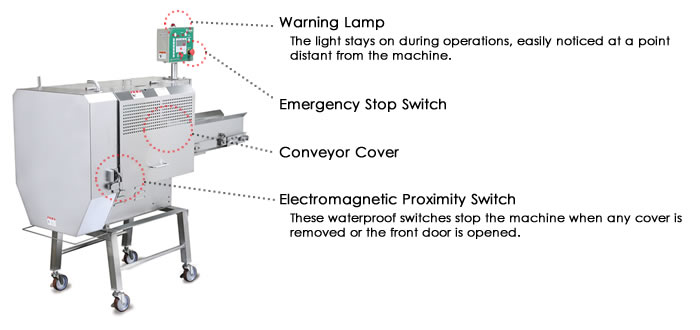

Safety



Safety is an indispensable factor in any food slicing machine. In order to ensure safe operation, SEVEN CHEFS Food Slicers incorporate various types of safety features.

Top Page

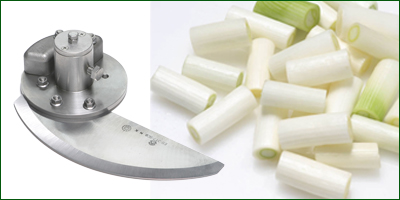

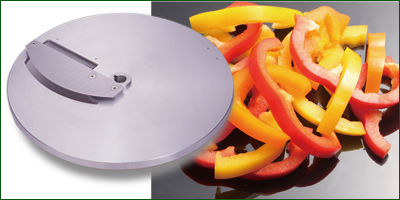

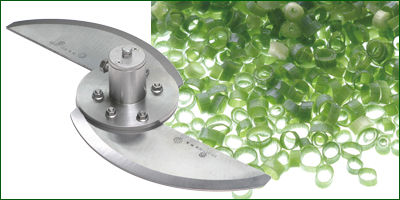

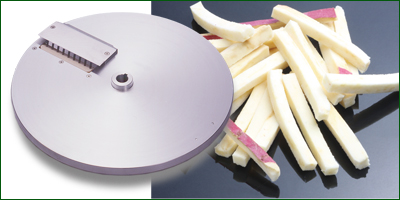

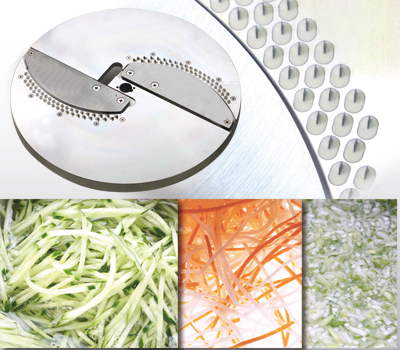

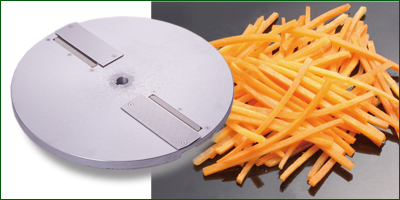

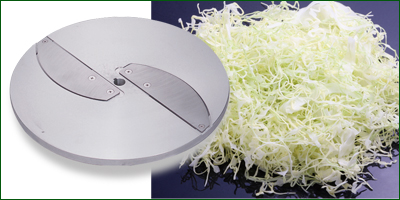

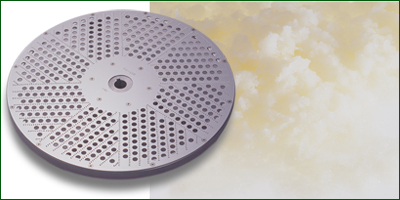

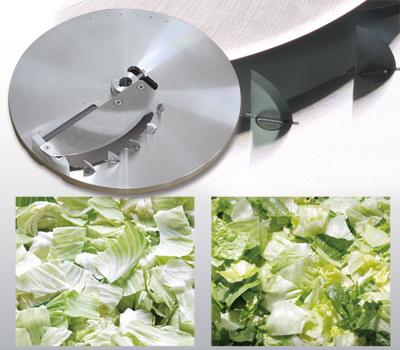

Disk Cutters & Sample Pictures



The following disk cutters allow for various cutting styles.

Material(Vegetables) Green onion, Chive, Onion, Cabbage, Carrot, Potato, Radish, Cucumber, Lettuce, Spinach, Sweet potato, Bell pepper, Burdock, Cassava, Lemon grass, Bamboo shoot, Okura, Celery, Long bean, Asparagus, Lotus root, Banana, Orange peel etc.
Material(Others) Pickles, Boiled octopus, Boiled squid, Seaweed etc.
Cutting Shape Cuts, Slices, Shreds, Julienne shreds, Chopping, Square shapes, Flat cut
Top Page

Specifictions



Machine dimensions W26.54" x L58.78" x H63.98" (W674 x L1493 x H1625mm)
Machine weight 617.29lb (280kg)
Cutting motor 3-phase, 200V, 1500W, 7.0A
Cutting entrance hole size W5.91" x 3.94" (150 x 100mm)
Cutting thickness range 1/32" to 3-1/8" (0.7 - 80mm)
Processing capability 550 to 8,800lb/h (250 to 4000kg/h)

The processing capability differs depending on the thickness of cut and the type of food used.

External Drawing(ECD-203)
