Vegatable Dicer Machine - Big Model !

DC-300 can cut onion, carrot, potato, cabbage into dices or cubes by using various size cutter.

DC-300 is bigger model of DC-203.

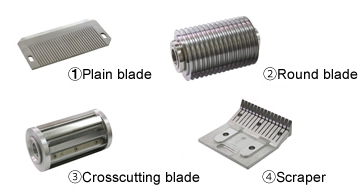

Highest Blade Quality

■ Retain Juice to the Fullest

■ Razor-sharp & Long Lasting Blades

Blade Blade

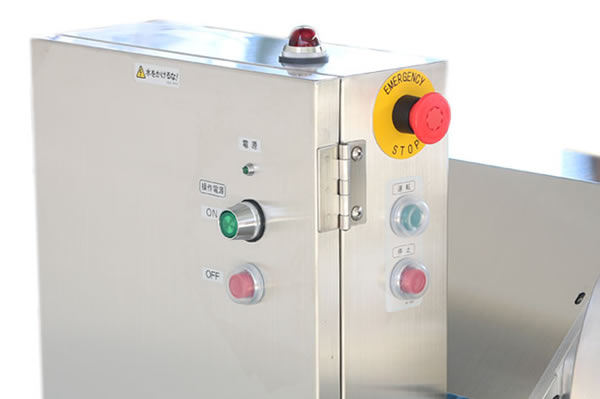

Easy Speed Control

Provides the ability to cut hard and soft vegetables with the same precision by manually varying the cutting speed.

Control



Quickest Changeover

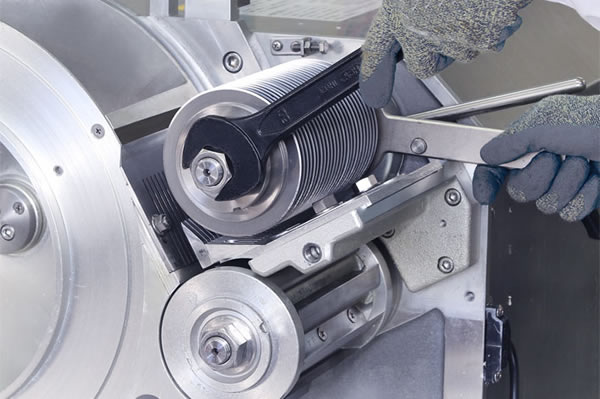

Only 3 minutes change time between blade sizes! Cleaning inside is very simple.

Just open the front door and remove the blade using with our safe cutter holder.



Easy to Clean and Maintain

Maintenance1 Maintenance2 Maintenance3 Maintenance4

1. Remove the discharge bucket. Loosen the hand knob and open the door. And, remove a nut fixing the blade.

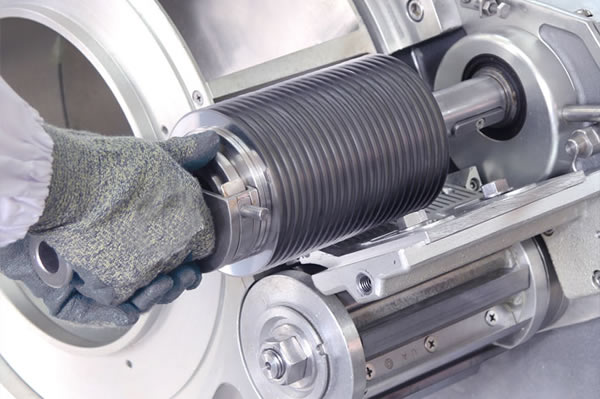

2. Remove all blade assembly, the scraper and slicing blade by safety tool.

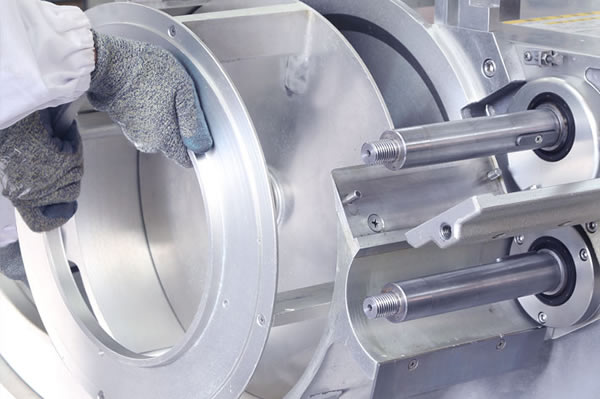

3. Remove the impeller.

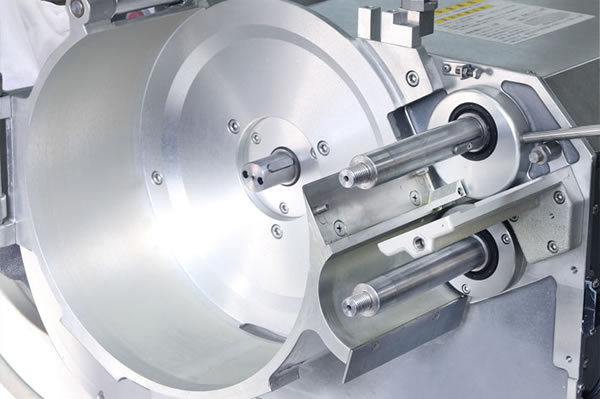

4. Rinse the cutter mounting sections.



Top Page

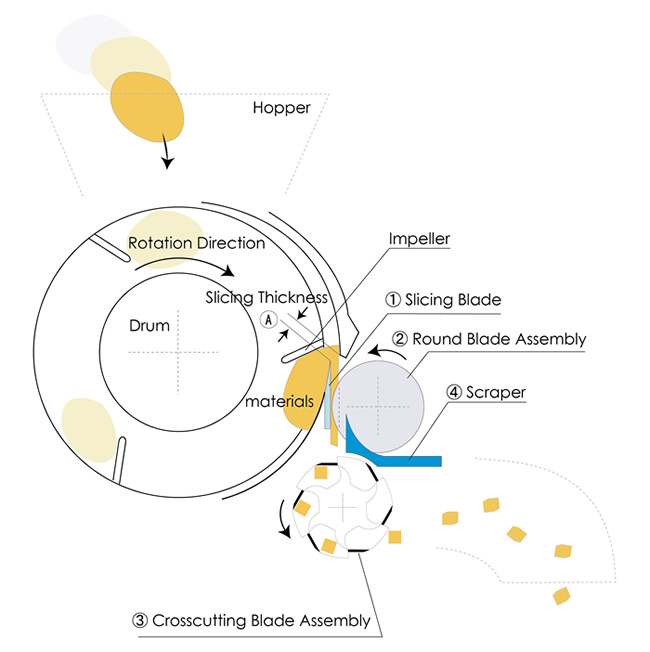

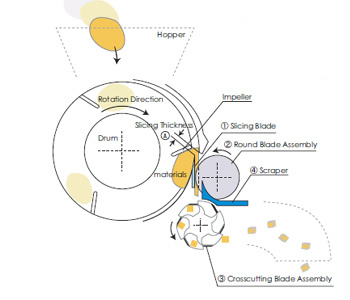

Dicing Operation and Blade Combination



Vegetables are fed into the Hopper.

(1)Centrifrugal force and the Impeller press the produce down onto the slicing blade.

(2)The produce flows directly into the Round Blade Assembly for the vertical cut.

(3)Finally, the produce is cut with the Crosscutting Blade and gently ejected from the machine.

Top Page

Dice Options

Material(Vegetables) Onion, Cabbage, Carrot, Potato, Radish, Cucumber, Sweet potato, Bell pepper, Burdock, Ginger, Pumpkin, Bamboo shoot, Garlic, Celery, Tomato, Lotus root, Mushroom, Apple, Mango, etc.
Material(Others) Boiled octopus, Boiled squid, Ham etc.
Cutting Shape Dices, Cubes, Chopping, Julienne shreds
Top Page

Specifictions



Machine dimensions W44.06" x L42.91" x H48.82" (W1119 x L1090 x H1240mm)
Machine weight 476lb (216kg)
Motor (For Drum) 3-phrase, 200V, 750W, 3.2A
Maximum product feeding size 5.7" (145mm) in diameter
Cutting thickness range 1/8"(3mm), 5/32"(4mm), 3/6"(5mm), 1/4"(6.5mm), 5/16"(7.5mm), 3/8"(10mm), 1/2"(13mm), 5/8"(15mm), 3/4"(20mm)
Processing capability (*1) 660 to 6600 lb/h (300 to 3000kg/h)

(*1) The processing capability differs depending on the thickness of cut and the type of food.

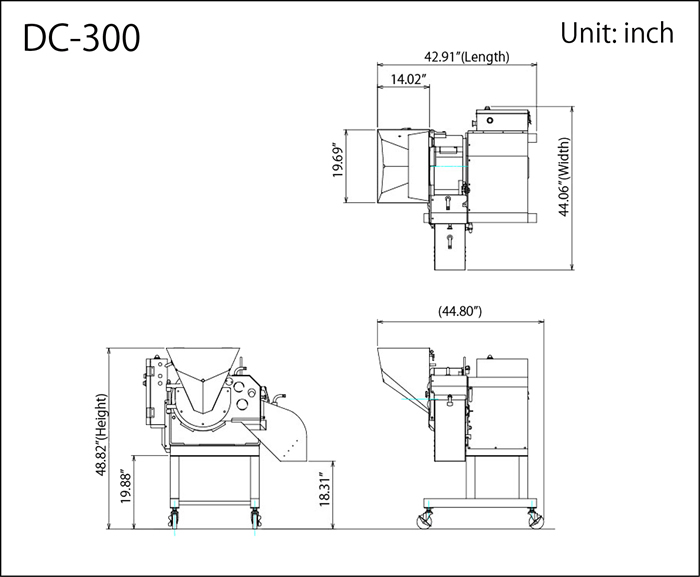

External Drawing(DC-300)
